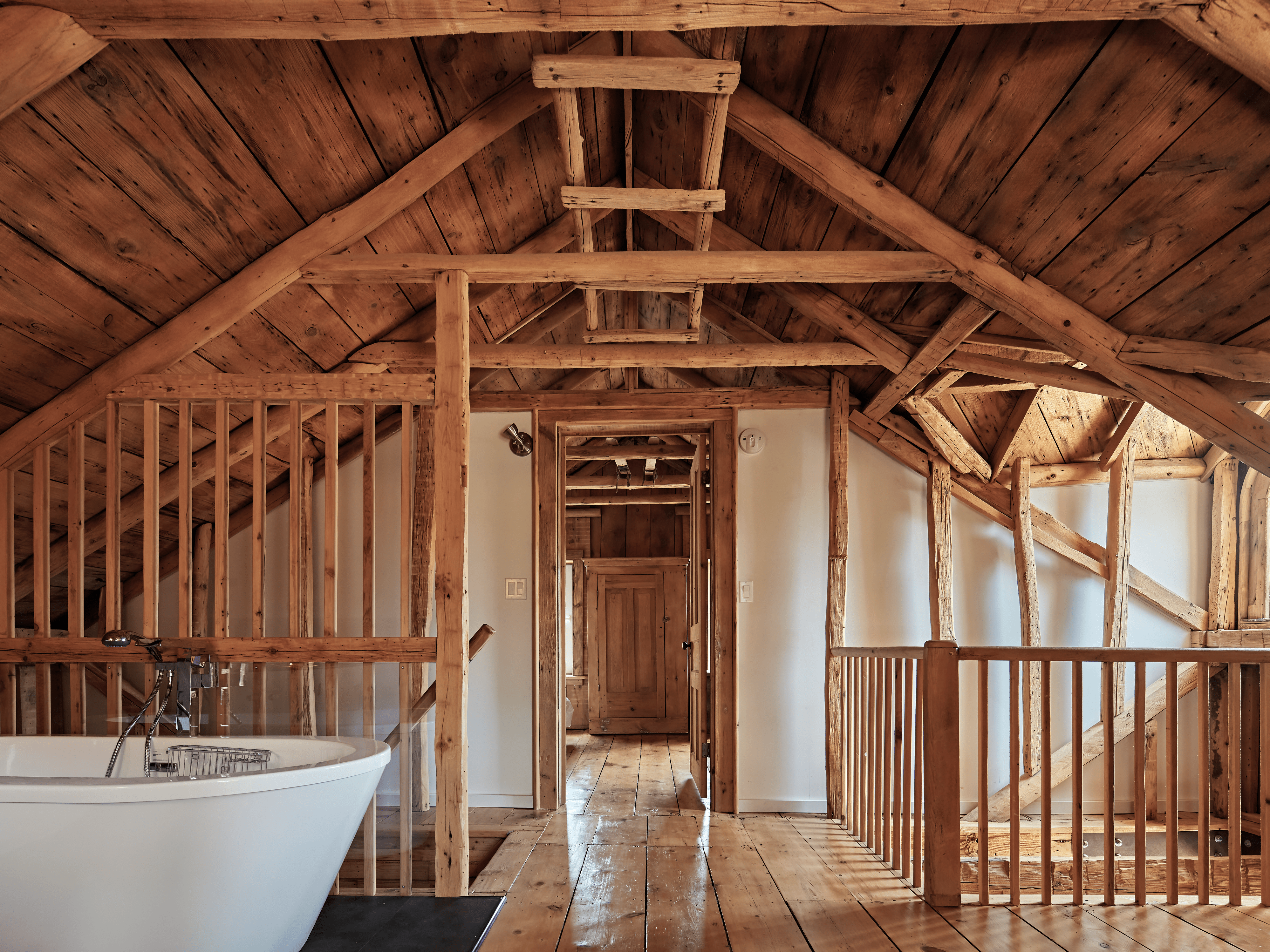

This project was a journey, as most renovations tend to be. Yet despite the slow progress of the project we managed to create a systematic combination of ‘archaeological’ discovery, preservation, encapsulation and architectural re-interpretation. The original building was reduced to its barest hand hewn wooden structure, meticulously cleaned and sealed inside an airtight skin. We then added a new jacket of R43eff Structural Insulated Panel (SIP) based insulation to the walls and roof.

One of the many challenges of this project was to get an airtight seal around the existing structure. To achieve this, we had to lift all ground level floorboards, insert an Oriented Strand Board (OSB) layer and then relay. The old board and batten walls had to be pried loose, working progressively around the building so that we could seal the floor to the air/vapour barrier wrapping the house.

The front gable window was intentionally oversized to allow a glimpsing view of the original house within the new house. This year, an electric “hair dryer” (actually a tiny electric heater purchased at a yard sale) has been maintaining temperatures comfortably despite the minus-25 degrees Celsius temperatures outside.

This renovated farmhouse will be a guesthouse to the future “great house,” which will be perched on the top of the adjacent waterfront escarpment overlooking Adolphus Reach.

Our firm learned a great deal from this project, and my newly acquired knowledge was immediately put to use in the form of another guesthouse for another future “great house,” also in Prince Edward County, this time overlooking Prince Edward Bay.

PROJECT DETAILS

Location
Prince Edward County, ON

Status
Completed

Gross Sq. Ft.
1,500

Project Value
Confidential

Client
Spike Capital

Project Team
Jonathan Kearns, Deborah Byrne, Kelly Fisher

Photography
Tom Ridout

Before & After

  • http://kmai.com/sites/default/files/styles/day_night_before_after_xl_960_632/public/images/projects/day_night/img_3827.jpg?itok=CiBhdkxf

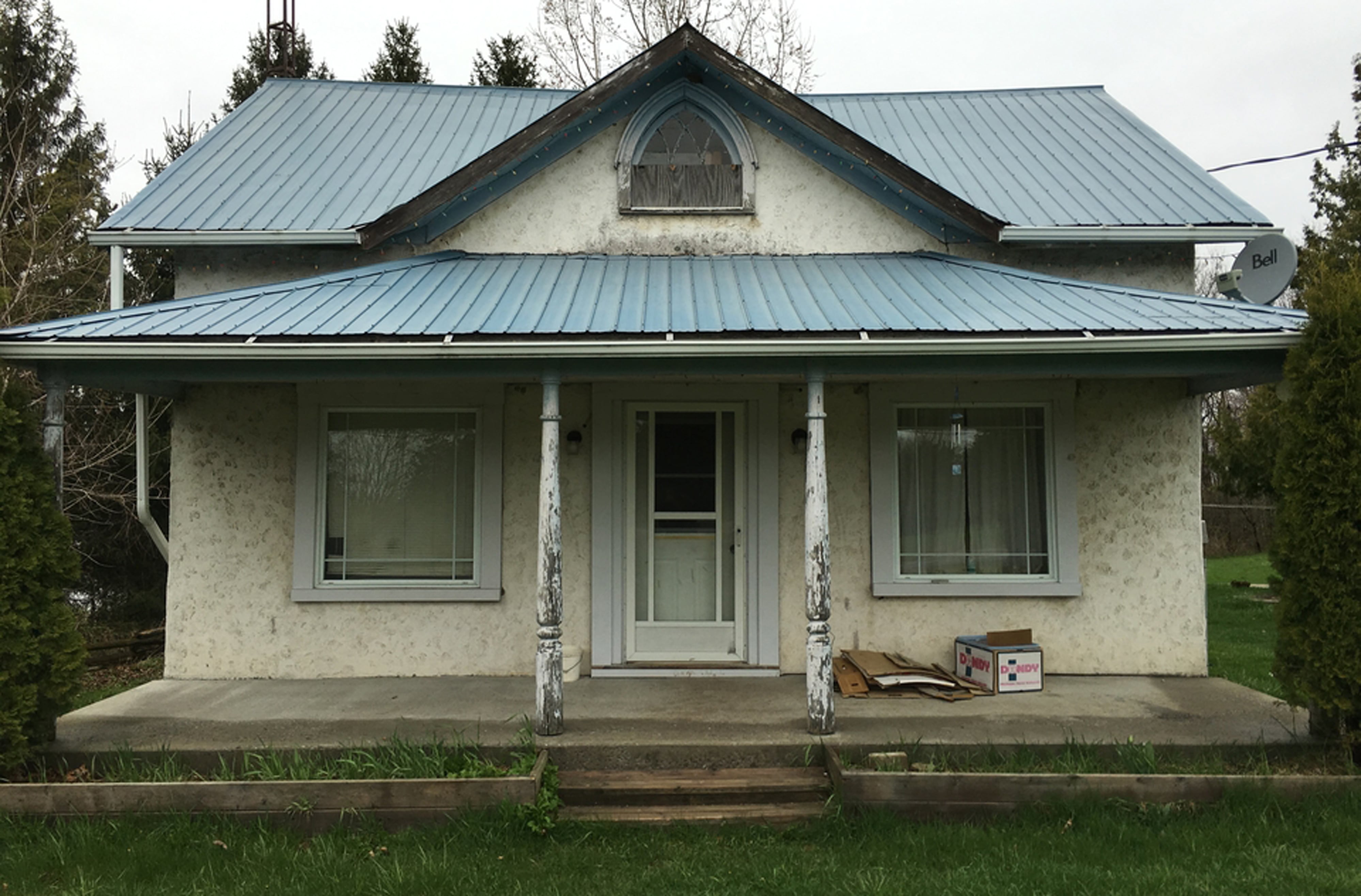

Before

The original building was reduced to its barest hand hewn wooden structure, meticulously cleaned and sealed inside an airtight skin.

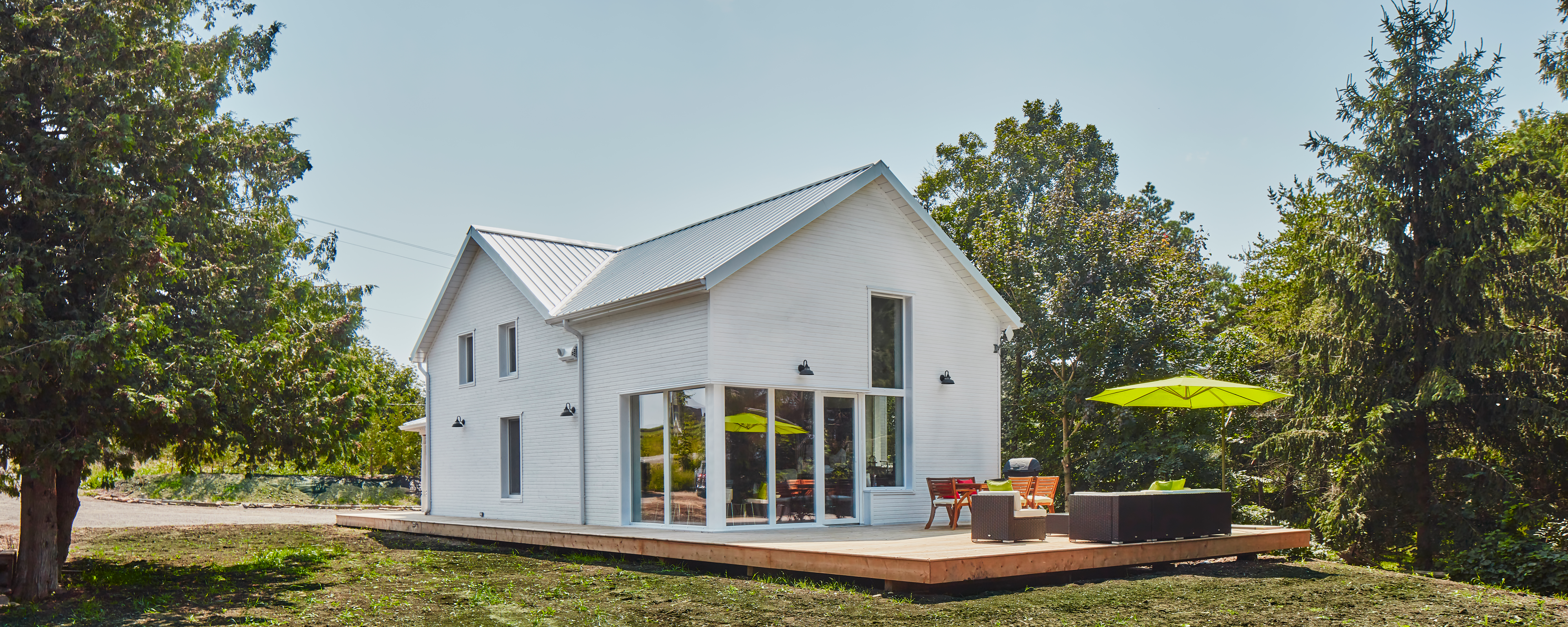

After

We then added a new jacket of R43eff Structural Insulated Panel (SIP) based insulation to the walls and roof.

Media Coverage

The Reach Guesthouse combines Passive House performance with classic beauty

Architect Jonathan Kearns shows that you can have it all.

READ MORE

Passive House Design: A frontline perspective

Passivhaus—or Passive House—is not about complex technologies. It’s about changing how we build, integrating low energy design criteria into projects from day one. There are five key Passive House principles. First: massively insulated, thermally broken airtight envelope. Second: triple-glazed...

READ MORE
